Pooks Parts 1977-1999 41mm Fork Lowers

1976-1999 41mm Fork Lowers

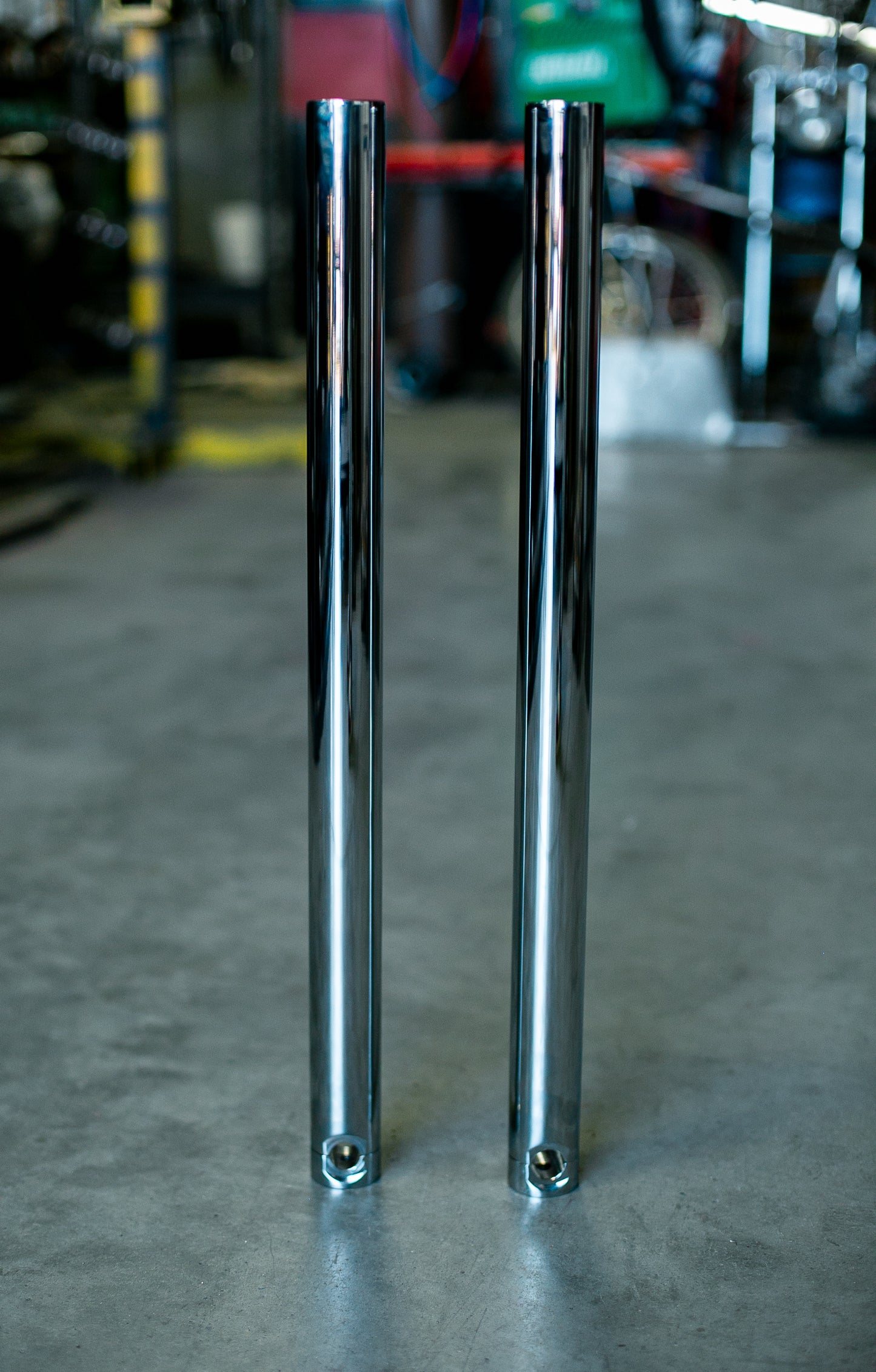

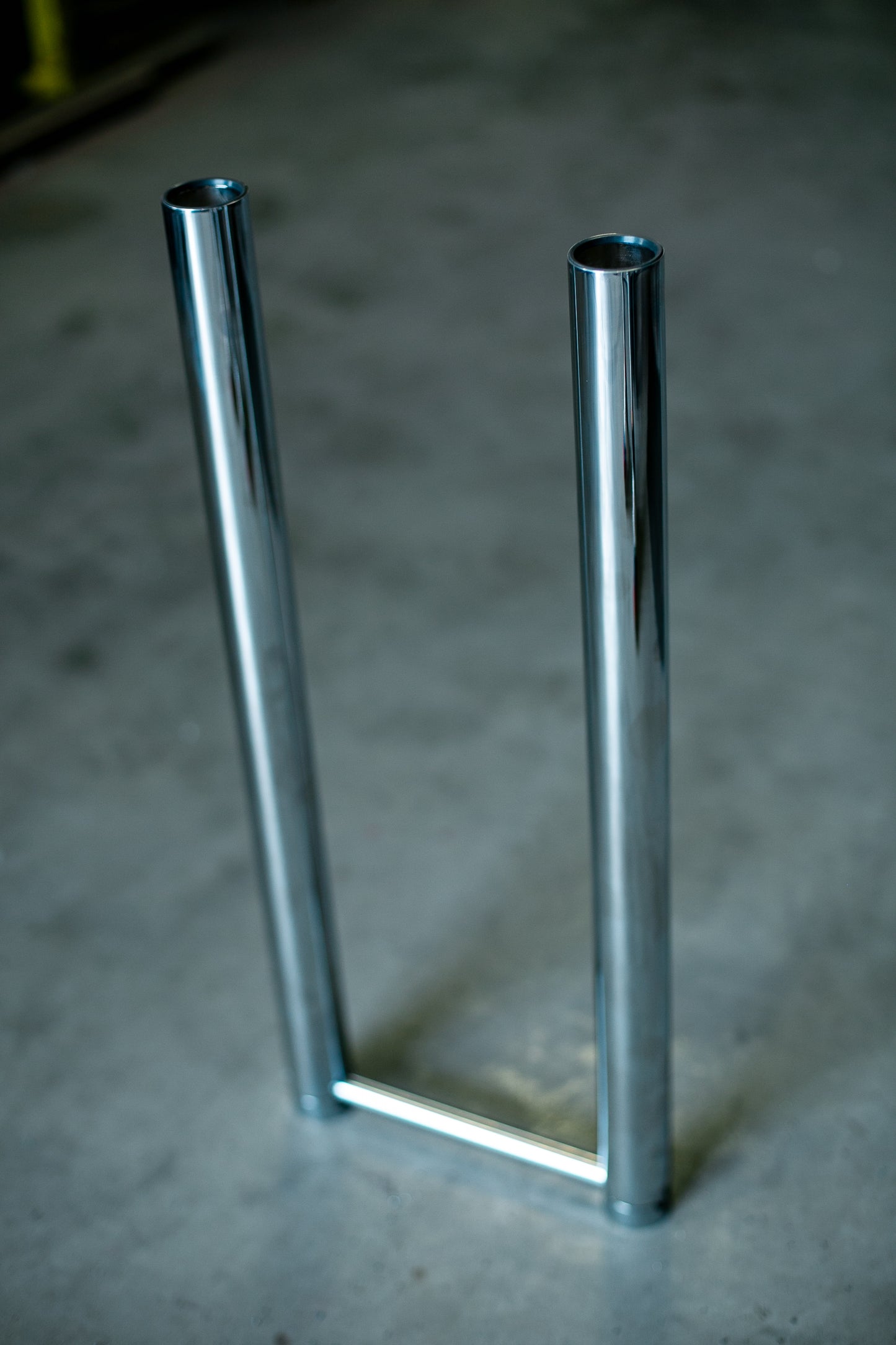

Update your 41mm fork lower from something worn out with a much cleaner and much more updated look with Pooks Parts 41mm Fork Lower. Made from high quality steel with a clean chrome finish and updated oil sealing, which is the same for all Pooks Parts Fork Lowers. Installation is quick and easy.

Custom Made - Made To Order

This product is made to order. Allow 4 to 6 weeks lead-time. Contact us for any custom applications or request.

If you're not sure about sizing or need something custom feel free to reach out.

Features

• Stock to 12+ over. (Bigtwin mechanical brake mount available)
• Stock overall lower length 16 inches.
• Made from high quality steel.
• Chrome, parkerized and raw finish.
• Oil seals and bushings pre installed.
• Comes with new dampener nuts and crush washers for improved sealing.
• Will work with stock star hub axle
• Custom clean axle and spacers sold separately.

Measurements

Measure from bottom of lower to the bottom of the triple tree for most accurate length. 3 to 4 inches of travel clearance is recommended.

Custom Made - Made To Order

This product is made to order. Allow 4 to 6 weeks lead-time. Contact us for any custom applications or request.

If you're not sure about sizing or need something custom feel free to reach out.

Installation instructions

1. Remove old fork tube.
2. Inspect fork tube for any damage.
3. Lightly coat inside of fork lower and seal with fork oil.
4. Carefully slide fork lower over inner fork tube.
5. Slide seal down tube and fully seat into groove. Slide retaining ring down. Use plastic driver and carefully tap retaining ring until flush with the top do not go any further.
6. Tighten dampener bolt and crush washer to Harley Davidson torque spec.
7. Fill fork tube with 7 oz of fork oil. (We recommend type E or 15w.)
8. Enjoy.

Note: Fork lowers DO NOT extend the length of your front end. New extended inner fork tubes are required based on application. Stock axle will not work without modification. Custom axles and spacers sold below.
